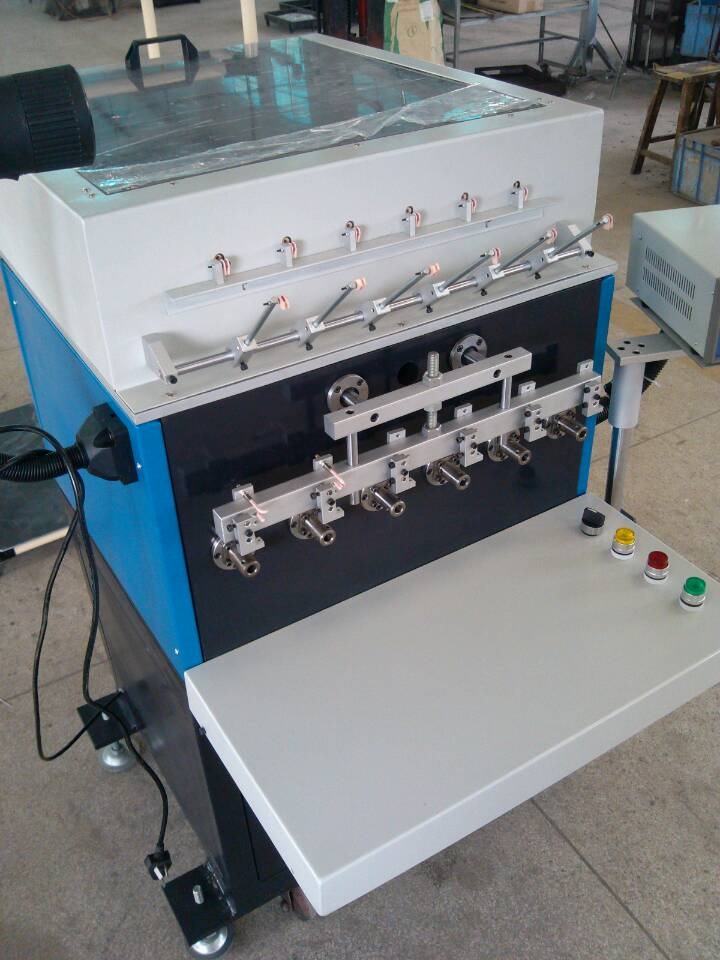

FLM-9006 Semi-automatic winding machine

Detail

Features of this machine:

Semi-automatic winding machine, manual loading and unloading, automatic winding, simple operation

The body adopts high-quality resin sand advanced castings

Bearing capacity, reduce noise and vibration, increase the stability of the machine

Imported guide rails and screws are used to ensure the accuracy of machine positioning and repeated positioning

Every step of high-speed spindle assembly is strictly controlled, high speed, low noise and long service life

It is easy to replace the model, only need to change the fixture and call the appropriate program

Main configuration:

1. Adopt Japanese Panasonic servo motor, imported screw and guide rail.

2. Adopt Japanese SMC cylinder and Japanese Koganei pneumatic solenoid valve.

3. Adopt Japan Keyence fiber optic sensor, Japan Omron photoelectric switch, Japan SMC magnetic switch.

4. The main shaft uses Japanese NSK high-speed bearings and Japanese Samsung belts.

Specifications:

Spindle spacing	80mm
Spindle number	6
Spindle direction	Clockwise / Counterclockwise. Every circle / 360 °
Spindle speed	15000rpm
Three-dimensional travel	X:85 Y:85 Z:55
Spindle servo motor power	750W
Applicable wire diameter	0.02-0.5(increasing motor power can be applied to larger wire diameter)
Voltage	AC220V±10%
Power	2000W
Maximum frame outer diameter	80mm
Quick fixture interface inner diameter	10mm
Needle bar moving servo motor power	400(X) 400(Y) 400(Z)
Guide bar movement speed	50mm/秒
Compressed air pressure	0.4-0.6mpa
Host size	900m650mm1100mm
Host weight	150kg
