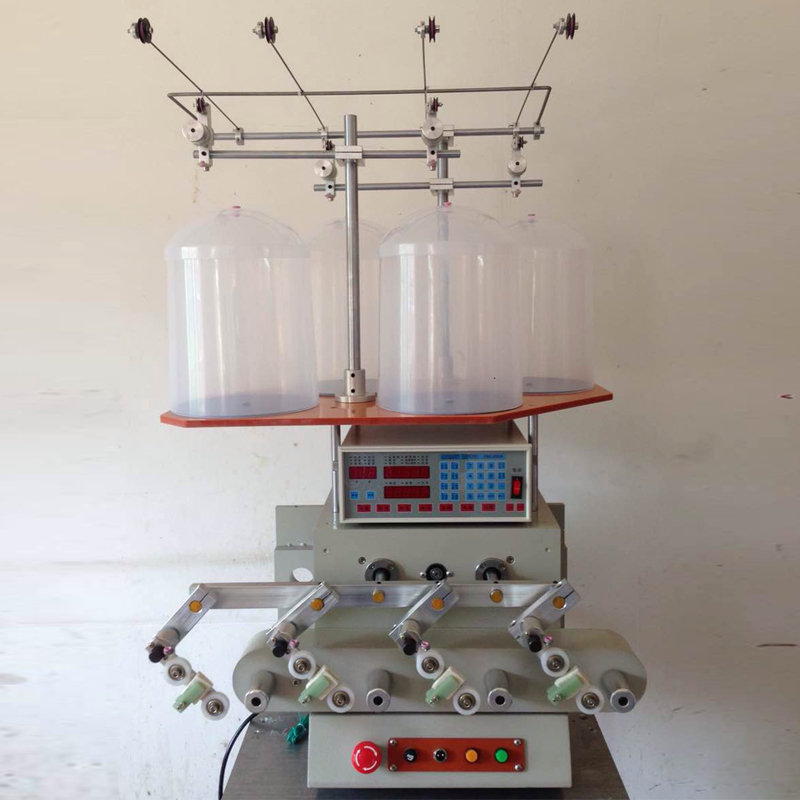

FLM-9005 Semi-automatic winding machine

0.05-1.0mm, 6 different wire diameters can be placed, can be wound, taped, and insulated tape can be completed at one time: Japanese jigs or flying fork type winding set

Features:

Suitable for all kinds of switching power supply transformers, suppliers, Japanese-shaped transformers, inductance coils, relay coils

1. Adopt Taiwan Wande controller, Taiwan Taian frequency conversion with AC three-phase asynchronous motor, environmental protection, stability and long service life;

2. Multifunctional microcomputer design, easy data setting, data can be saved after shutdown, and there is a power-off protection function;

3. Teaching function design, can assist the setting of winding point and width position, edit winding data during pause;

4. 0-999 sets of steps to set the capacity, you can easily set forward and reverse, cross slot and dense winding work;

5. Special cable assembly design, up to 6 different wire diameters can be placed, equipped with insulating tape table, can be wound, taped, and insulated tape is completed at one time: can replace Japanese-shaped jigs or flying fork winding ,operating.

6. Unique motor transmission design, the main shaft is indirectly driven by the motor to improve the service life of the motor;

Product Specifications:
